Concealed Cisterns The standard for flush technology
The classic in modern bathroom installations
When it comes to bathroom design, customers now expect contemporary design and innovative functions and in many cases space-saving solutions. Geberit concealed cisterns compared to conventional close coupled toilets tick all the boxes, giving you a reliable, quality solution. They provide an aesthetically fresher look by hiding the cisterns behind the wall, giving you more useable space in your bathroom. Geberit concealed cisterns are the classics of modern bathroom installations and have been installed a million times over around the world for more than 50 years.
BENEFITS OF GEBERIT CONCEALED CISTERNS
Geberit concealed cisterns not only give you more space in your bathroom and provide greater design freedom and flexibility but the high-quality material ensures Geberit is virtually maintenance-free.
- Quality assurance: High density, impact-resistant one-piece blow moulded HDPE tank.
- Peace of mind: the 50 year spare parts availability and the 15-year warranty on Geberit cistern tanks and frames provides long-term security.
- Accessibility/maintenance: the dual-flush button provides the access required for servicing the internal parts of the cistern.
- The most extensive product range on the market: with our comprehensive product range, nearly every bathroom can benefit from a Geberit inwall cistern and a beautifully crafted flush button.
- Designed in Switzerland.
Equipped for any situation
You not only have a wide selection of Geberit flush buttons, but also reliable Geberit installation elements for installation behind the wall. These are available in different installation heights and for front flush actuation, as well as flush actuation from above for lower installation heights. Geberit flush buttons bear the name of the suitable concealed cistern so that you can be certain that everything will match.

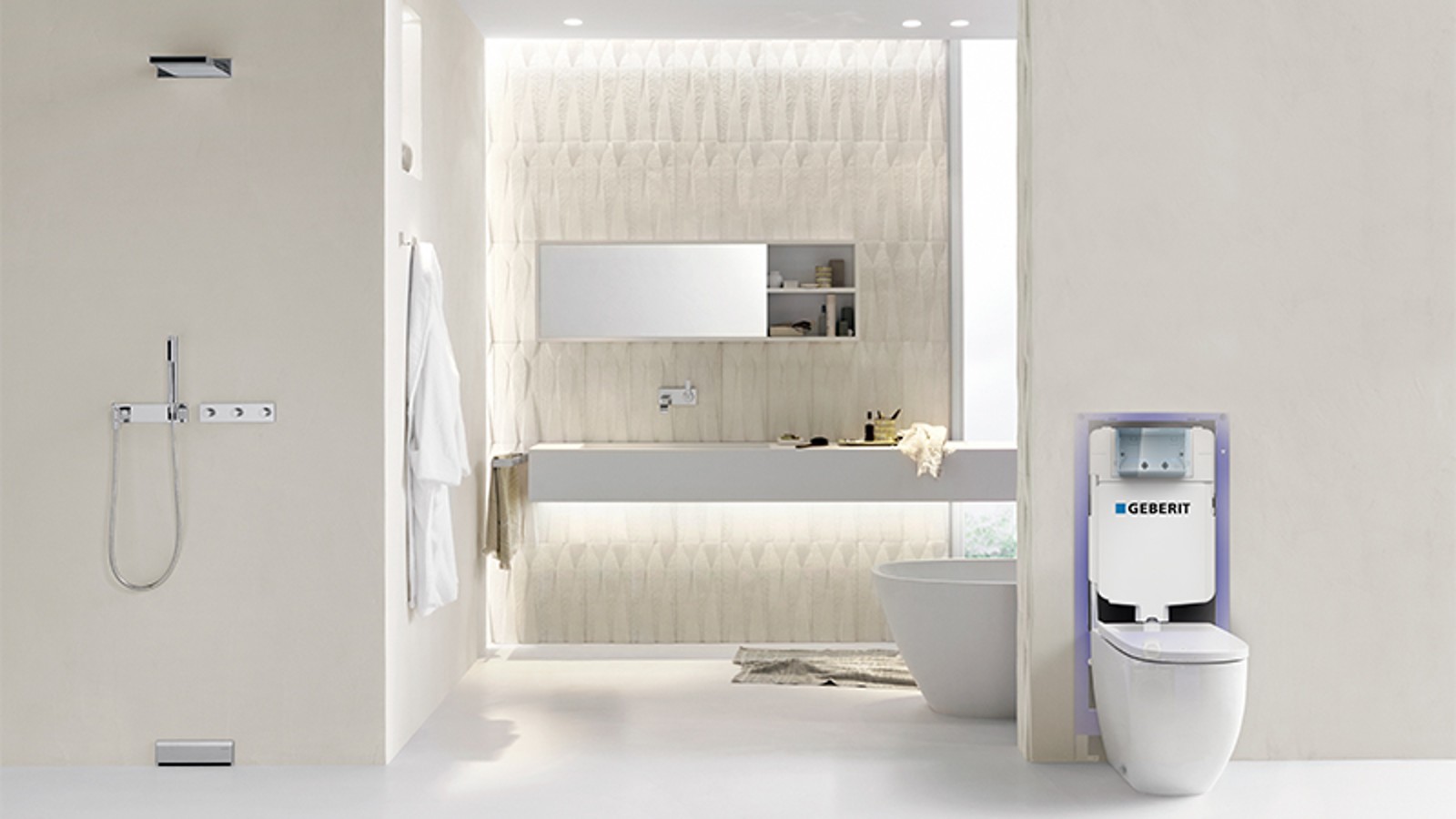

GEBERIT SIGMA CONCEALED CISTERNS
The Geberit Sigma8 Concealed Cistern is designed in Switzerland and made in Germany from a single piece of blow moulded HDPE making it permanently leak-proof.
- Available WELS 3 Star 6L/3L or WELS 4 Star 4.5L/3L.
- Leak-proof high density, impact-resistant one-piece blow moulded HDPE tank.
- Dual-flush plate provides access for servicing the internal parts of the cistern.
- Suitable for S or P trap back to toilet pans.
- Operating pressure 10-1000kpa.
- Fits standard 90mm walls.
- Freedom to choose over 30 flush button designs available in Australia.
- Up to 15 years warranty and 50 years spare parts availability.
- Supports up to 400kg, comply with AS 1172.1 (Geberit Sigma8 Duofix for Wall Hung Pans).

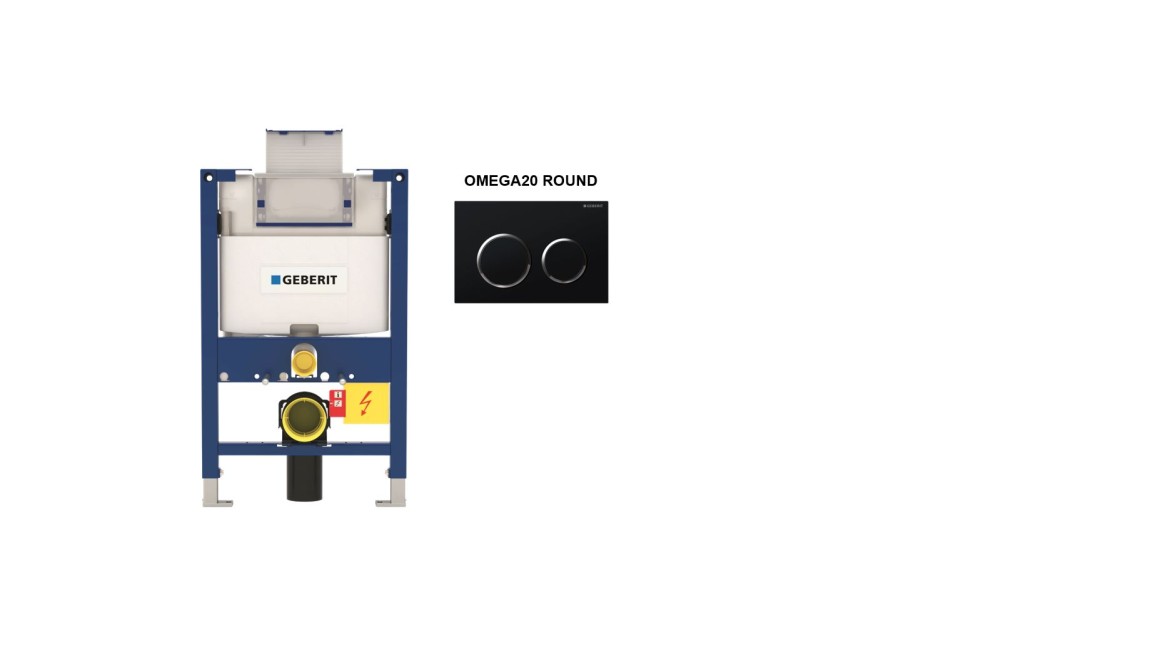

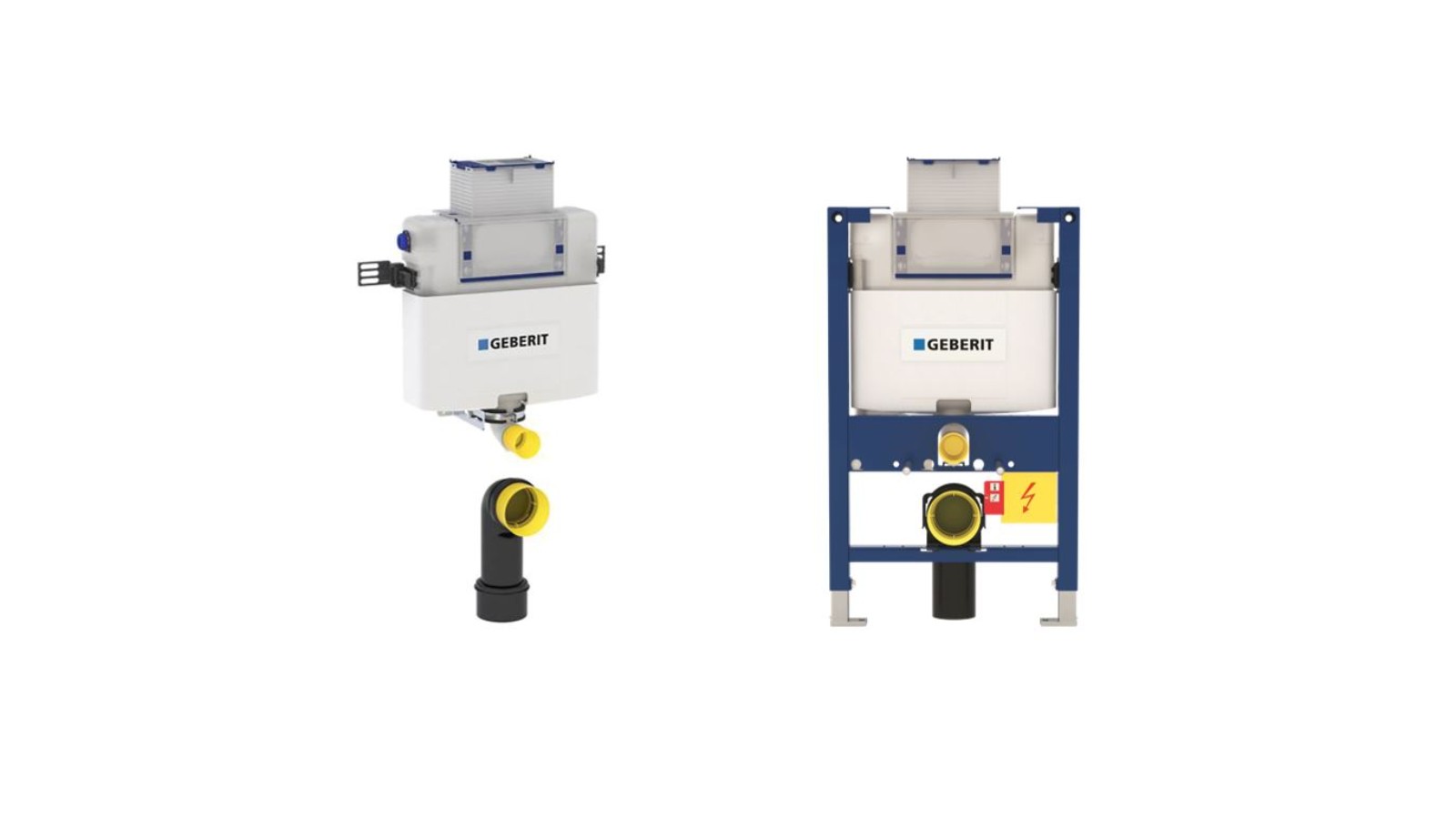

GEBERIT OMEGA CONCEALED CISTERNS
The Geberit Omega Concealed Cistern is designed in Switzerland and made in Germany. Designed for smaller bathroom spaces, their low height construction can comfortably fit under counters, where space is at a premium.
- Available WELS 3 Star 6L/3L or WELS 4 Star 4.5L/3L.
- Leak-proof high density, impact-resistant one-piece blow moulded HDPE tank.
- Dual-flush plate provides access for servicing the internal parts of the cistern.
- Suitable for S or P trap back to toilet pans.
- Ideal for low height in wall or in vanity installations.
- Operating pressure 10-1000kpa.
- Front or top press operation.
- Compatible with all Omega flush buttons.
- Up to 15 years warranty and 50 years spare parts availability.
- Supports up to 400kg, comply with AS 1172.1 (Geberit Omega Duofix for Wall Hung Pans).
GEBERIT KAPPA CONCEALED CISTERNS
The Geberit Kappa Concealed Cistern range is ideal for mid-height in vanity or under window installation. Designed in Switzerland and made from a single piece of blow moulded HDPE making it permanently leak-proof.
- Available WELS 3 Star 6L/3L or WELS 4 Star 4.5L/3L.
- Leak-proof high density, impact-resistant one-piece blow moulded HDPE tank.
- Dual-flush plate provides access for servicing the internal parts of the cistern.
- Suitable for S or P trap back to toilet pans.
- Ideal for low height in wall or in vanity installations.
- Operating pressure 10-1000kpa.
- Front or top press operation.
- Compatible with Kappa50, 21, 20, Kappa remotes (separate service access required with pneumatic buttons) and Sigma50, 30, 21 and 20 buttons available in Australia with Sigma adapter.
- Up to 15 years warranty and 50 years spare parts availability.
- Supports up to 400kg, comply with AS 1172.1 (Geberit Kappa Duofix for Wall Hung Pans).
- Installation flexibility with adjustable flush pipe and variable button height (Geberit Kappa Mid-level Back to Wall Pans).
EVERYTHING WITH A SYSTEM - GEBERIT FLUSHING SYSTEMS
Geberit provides reliable, discreet behind-the-wall solutions that ensure perfect functionality, outstanding convenience and maximum durability. The flush buttons are the only part of the concealed cistern the user can see. A variety of flushing systems are available, making it possible to find the right product for a particular application or special structural conditions. To make it easier to match the Geberit flush button with the appropriate cisterns, they are each given a “family name” that they share with the cisterns: Sigma, Omega or Kappa.
